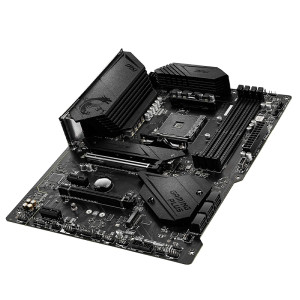

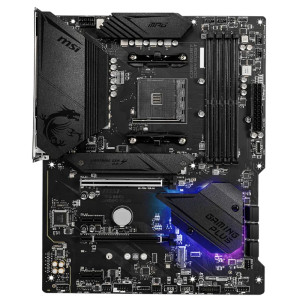

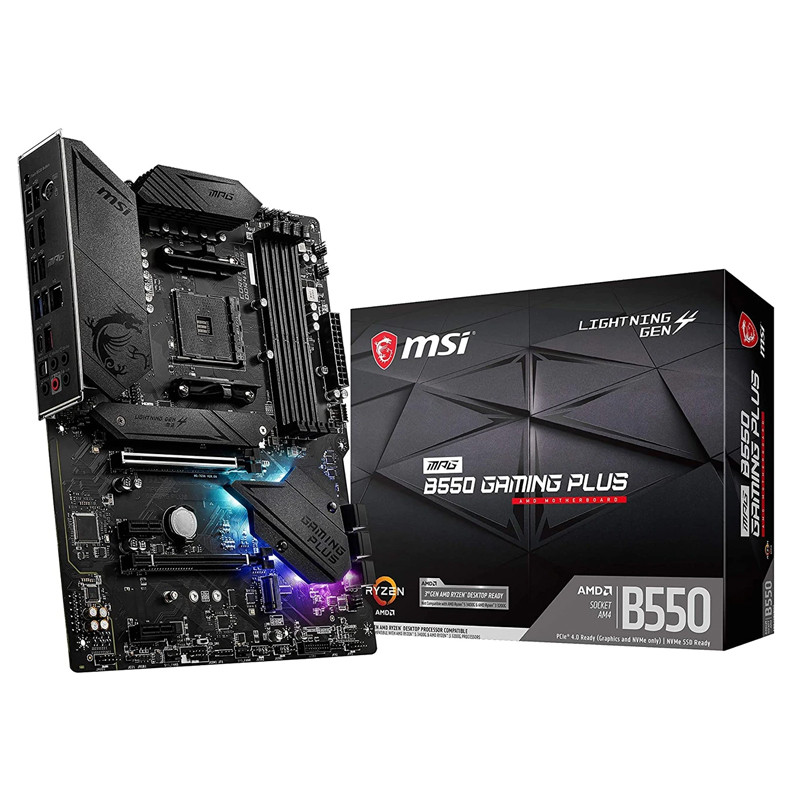

PLACA BASE MSI MPG B550 GAMING PLUS DDR4 ATX AM4

Marca msi
Modelo MPG B550 GAMING PLUS (911-7C56-002)
Plataforma - ATX (30.5 cm x 24.4 cm)
Chipset - AMD® B550 chipset

CPU
Soportados: - Soporta AMD® RYZEN™ 3ª Generación con Socket AM4
Memoria
- 4 x DDR4 memory slots, soporta hasta 128GB
- Soporta DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz por JEDEC
- Soporta DDR4 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400+ MHz por A-XMP OC MODE)
- Dual channel memory architecture
- Soporta non-ECC UDIMM memory
- Soporta ECC UDIMM memory (non-ECC mode)
- Soporta un-buffered memory

Slots Expansión
- 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
- 1 x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
- 2 x PCIe 3.0 x1 slots

Gráficos
- 1 x DisplayPort, 4096x2160 @ 60Hz
- 1 x HDMI, 4096x2160 @ 24Hz
- Memoria compartida máxima de 16GB

Multi-GPU
- Soporta 2-Way AMD CrossFire™ Technology

Puertos E/S,
Conectores
Internos
- 1 x 24-pin ATX main power
- 1 x 8-pin ATX 12V power
- 6 x SATA 6Gb/s
- 2 x M.2 slots (M-Key)
- 1 x USB 3.2 Gen 1 5Gbps Type-C
- 1 x USB 3.2 Gen 1 5Gbps
- 2 x USB 2.0
- 1 x 4-pin CPU fan
- 1 x 4-pin water-pump fan
- 6 x 4-pin system fan
- 1 x Front panel audio
- 2 x System panel
- 1 x Chassis Intrusion
- 1 x 4-pin RGB LED
- 2 x 3-pin RAINBOW LED
- 1 x TPM module
- 1 x Clear CMOS jumper

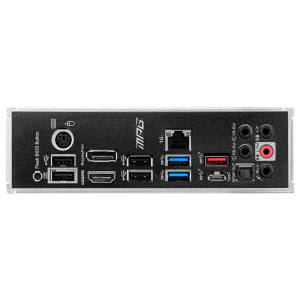

Externos
- PS/2 Combo
- DisplayPort
- 2.5G LAN
- 1G LAN
- HD Audio Connectors
- Flash BIOS Button
- USB 2.0
- HDMI
- USB 3.2 Gen 1 5Gbps (Type-A)
- USB 3.2 Gen 2 10Gbps (Type-A + Type-C)
- Optical S/PDIF OUT

Otras Características
Almacenamiento
- 6 x SATA 6Gb/s
- 2 x M.2 slots (Key M)

RAID
- Soporta RAID 0, RAID 1 y RAID 10 para dispositivos SATA
- Soporta RAID 0 y RAID 1 para M.2 NVMe RAID

USB
- 3 x USB 3.2 Gen 1
- 8 x USB 2.0
- 2 x USB 3.2 Gen 2
- 2 x USB 3.2 Gen 1

Red
- 1 x Realtek® RTL8111H Gigabit LAN

Audio
- Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
- Soporta S/PDIF

Montaje
- 9 agujeros de montaje

S.O. Compatible
- Soporte para Windows® 10 64-bit
